產品介紹


亞捷為 Telestream 臺灣區最高等經銷代理商(Premier)
買 Telestream - Wirecast 找亞捷,服務價格有保障

Telestream 的 Wirecast 為唯一一款針對多台伺服器及多個平台同時播放, 可捕捉、即時製作與即時串流編碼的跨平台全方位直播串流製作軟體。 Wirecast 可以輕鬆地將您的直播和預錄視頻直播到 Facebook Live、YouTube、Twitter 等。

立即購買


Wirecast 8 新功能

截至目前為止最好的 Wirecast 版本!您必須擁有!數以百計的修改與開發,為您呈現數十種新的功能!

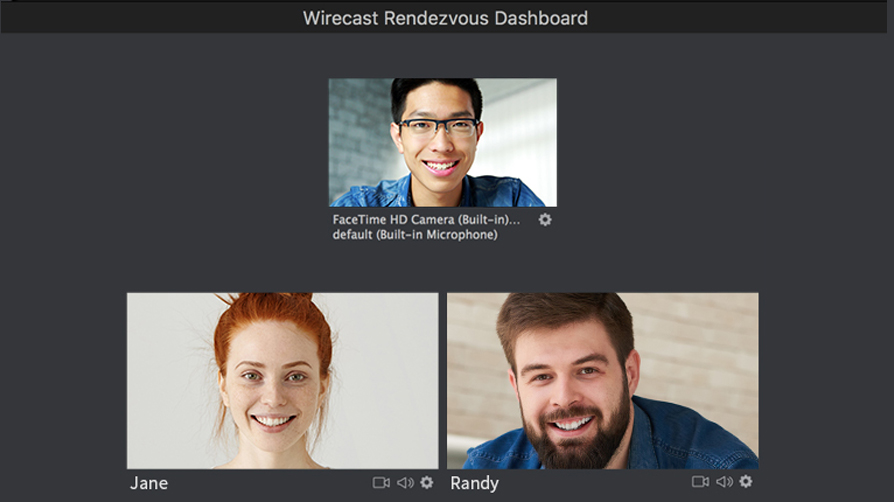

Wirecast Rendezvous

使用 Rendezvous 最多可達 7 人同時加入您的 broadcast 來互動,Wirecast 內建提供點對點視訊會議、螢幕共享以及遠端解決方案。整合 Wirecast GO iOS APP、Chrome 以及 Firefox 瀏覽器。

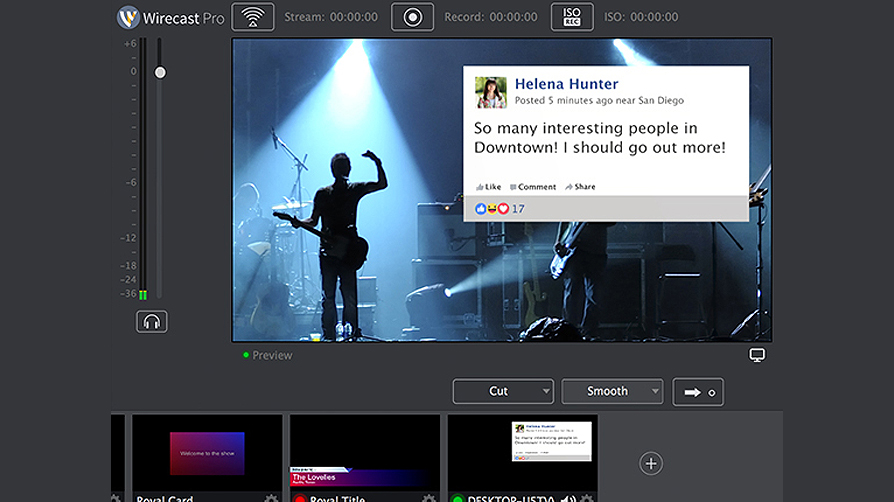

Facebook Live Comments

使用 Wirecast 所附加的 Titler Live Express (Wirecast 8 免費附加),有美麗的自訂義動畫模板,直接在螢幕上規劃和顯示 Facebook 評論與訊息。

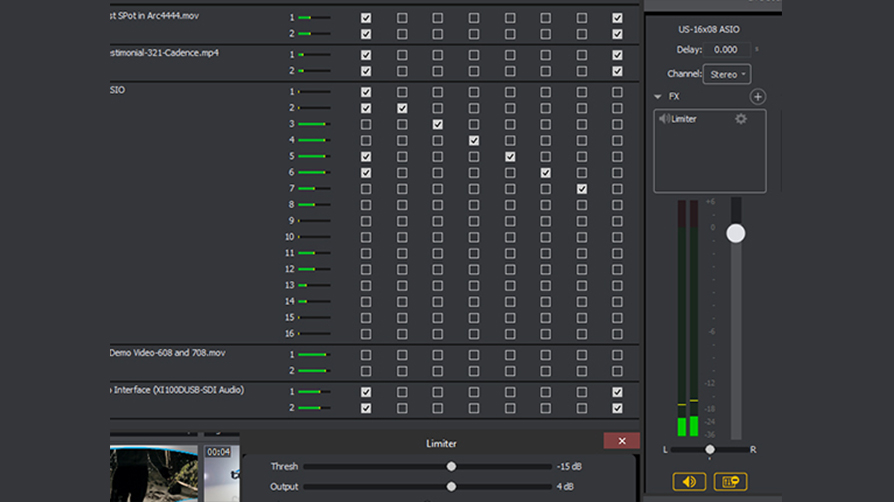

Multi-track Audio Mixing (Pro)

每個 broadcast 錄製或輸出可以多達8個獨立的音軌(混音)。適用於多語系的媒體串流或是隔離音軌以進行後期製作。

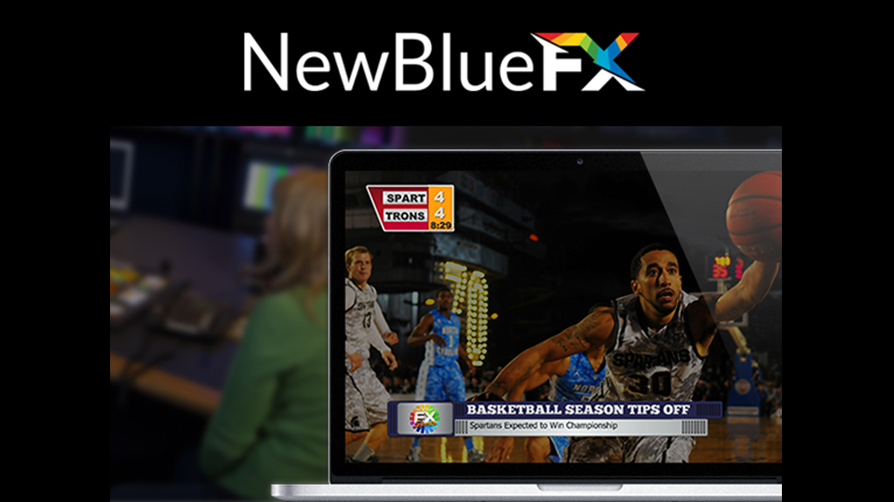

NewBlueFX Titler Live 3

Wirecast 搭載最新版本並獲獎 NewBlue FX 的 live graphics 和 titling program。建立美麗的 3D 動畫標題和圖形,並從數百個模板中選擇或是自行創建。現在有提供 4 種不同的版本:Present、Sport、Social 和 Complete。

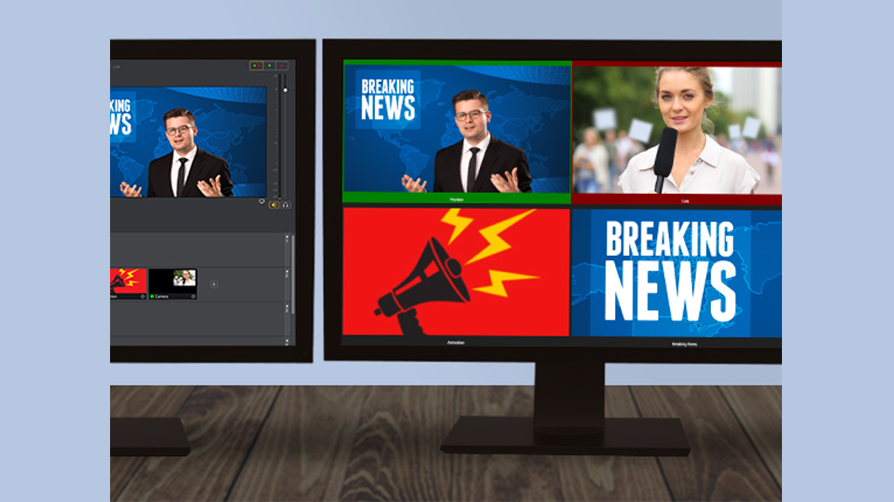

Multi Viewer

在任何連接的顯示器上預覽任何訊號來源或是攝影機角度。可自行定義您的版面,以便您可以一目了然地查看所有畫面。

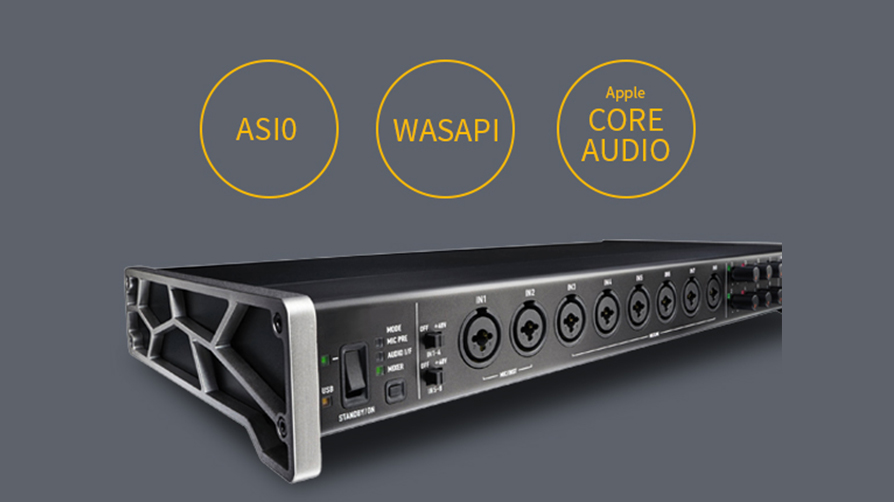

Multi-channel Audio Ingest

現在您可以在每個音訊來源中加入最多 16 路聲道。避免不必要的 upstream mixing 並在 Wirecast 中獲得所需要的音訊。支援添加 ASIO 和 WASAPI 兼容設備。

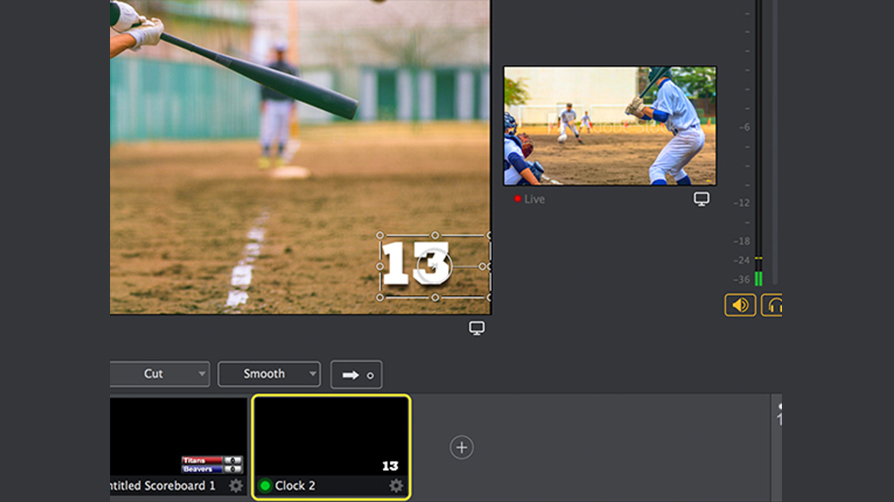

Clocks & Timers

將時間和日期添加到任一 broadcast 或是透過滑鼠點擊建立客製化的時鐘、計時器與碼表。


Multi-channel Audio Ingest

最簡單易上手的操作。新的介面上可以直接在預覽編輯器調整您的來源檔大小、旋轉和剪裁。Z軸的旋轉控制。


Better Performance

全新且高效能的Engine。提供更好的色彩空間轉換和增強編碼性能與資源管理,同時使用更少的資源。

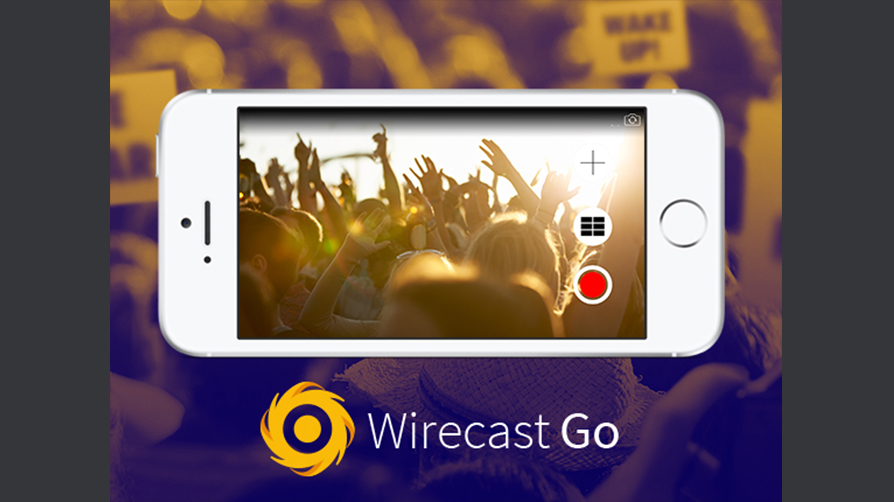

Wirecast Go 2.0

使用新版的Wirecast Go APP(iOS),您可以透過您的 LTE 或與 Rendezvous 的 WiFi 連結來串流傳輸至任何 Wirecast 系統。適用於遠端操作與執行。
*in-app purchases

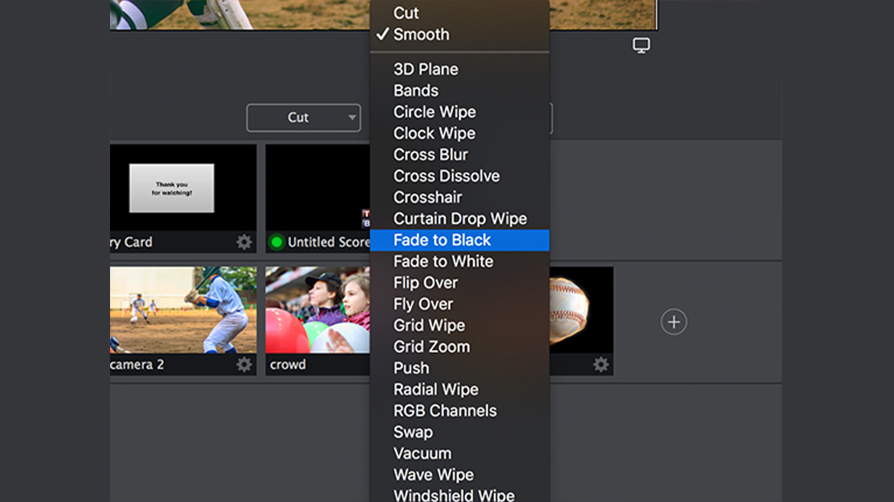

New Transitions

Wirecast 8 帶來了大量新的轉場動畫,包括對”smooth”轉場的全面檢修。立即將您的鏡頭透過畫面來呈現這些 Style 吧!

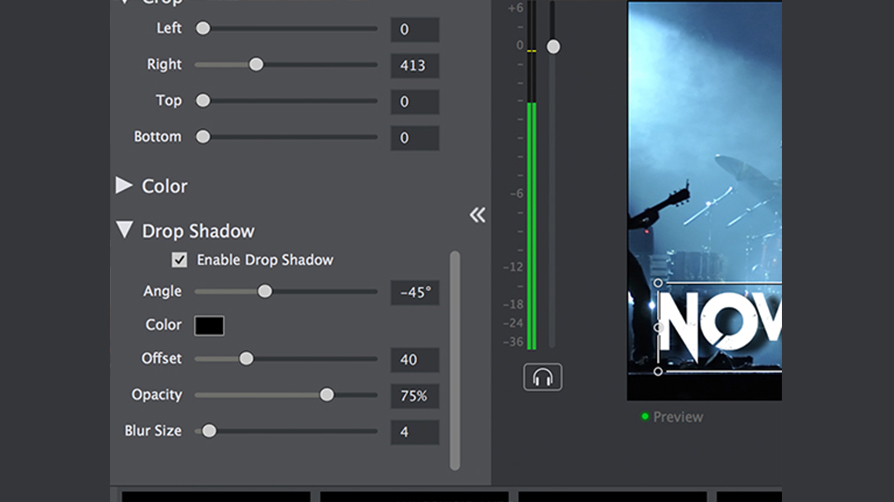

Drop shadow & Reflection

加入美麗的、可自訂的反射和陰影到 any source。適用在 chroma keyed 和 live sources,因此此設定僅會對於圖像的正確部分來應用此效果。




Wirecast 工作流程

Wirecast

擷取您的資料來源

裝置 裝置

  • 攝影機:USB、Thunderbolt、SD/HD SDI、HDMI
  • iOS
  • 麥克風:USB、XLR、Line in
  • 混音軟體

影像擷取卡 影像擷取卡

網路/IP 網路/IP

  • 網頁顯示
  • 網路串流*:RTMP, RTSP, MMS, HTTP
  • 螢幕擷取與遠端桌面展示
  • 網路攝影機*

電腦 電腦

  • Mac
  • Windows

網路/IP 其他

  • 系統音效擷取
  • Media Files
查看可支援的裝置清單列表
* 表Wirecast Pro 功能
Wirecast

製作屬於您的節目

直播製作 直播製作

  • 直播切換
  • 轉場
  • 標題列
  • 色鍵
  • 子母畫面
  • 混音
  • 聲音延遲
  • 即時計分板*
  • 重播與 IOS recording
  • 建立播放清單
  • Twitter 動態
  • Wirecast 用 NewBlue Titler Pro Live 3D 動畫標題
  • 與 Sprotzcast 即時計分板整合*
  • 3D 虛擬場景*
    * 表Wirecast Pro 功能

影像擷取卡 編碼

  • 軟體:X264、H.264、ProRes、WMV、MJPEG、AAC
  • 硬體:Intel QuickSync, nVidia NVENC, Apple H.264
Wirecast

直播串流

串流協定 串流協定

  • RTMP
  • RTP for multi+ and unicast

網路/IP 目的地

  • Facebook Live、YouTube Live、Twitter Periscope
  • 串流伺服器
  • CDNs
  • 光碟錄製
  • 虛擬攝影機與麥克風out (e.g. Skype)

Wirecast 榮耀

功能與應用


您可利用Wirecast串流多台直播攝影機,同時動態混合如影片、影像、聲音與附加製作功能(如轉場、即時重播、播放清單、內建標題、色鍵、虛擬背景及即時計分板)。Wirecast適用於播放專業風格的現場網路節目、新聞、線上電競賽事、運動賽事、演唱會、禮拜儀式、公司會議、授課與其他多種場合。

教育

Wirecast可直播用於畢業典禮、頒獎典禮、學生播報新聞與運動、講座與社區課程,Wirecast適用於各種教育活動。


禮拜 / 活動

透過Wirecast,讓您能夠參與以及擴展您的服務與活動,觸及更多的人。


Live 活動製作

直播會議、音樂會、訪談等等。Wirecast提供了串流傳輸現場活動所需要的一切。


運動

捕捉每一刻動態動作!使用 Wirecast 的專業功能,如:clocks, 記分板和即時重播,讓觀眾一同參與比賽活動。


廣電媒體

串流您的製播內容到OTT和社交平台,或是透過Second-screen直播和互動產品來增加您的優質內容。


電子商務 / 社交媒體

Wirecast 是完美的直播營銷工具,使用 Wirecast 與 Facebook Live、YouTube、Periscope平台直播,即時與客戶、粉絲以及潛在客戶進行接觸


Wirecast 功能說明

使用簡便

不需專業影片技巧,您也可創造出洗鍊的現場直播內容。Wirecast使用簡單且價格大眾化,您僅需一台攝影機、一台電腦再連上網路;僅需其他即時影片串流解決方案的部分價格,即可以即時或隨選方式向所有觀眾播放即時影片作品。

即時動態及其他媒體間切換

Wirecast強大的製作能力讓您能輕鬆切換多種直播攝影機動態,同時動態混合至預錄影片、聲音、圖形及投影片中;輕鬆完成轉場、標題、標題列及其他影片效果,讓您的影片看起來更加洗鍊。

支援多台攝影機及其他輸入來源擷取

Wirecast支援的輸入來源數量無上限,範圍涵蓋網路攝影機(透過USB、火線)、DV/HDV、SDI攝影機(透過影像擷取卡)、iOS來源、IP 及網路基礎來源與無線裝置。Wirecast支援Blackmagic Design、Matrox與Teradek等公司所生產的多種影像擷取卡及裝置。您僅需將輸入來源連接至電腦,Wirecast便會辨識為即時動態。

社交媒體參與

Wirecast 讓參與社交媒體變得更簡單了:使用內建的 Twitter 和 Facebook 顯示與評論,升級到 Titler Live Social (須另外付費) 可呈現美麗的3D標題。

語言支援

英文、巴西葡萄牙文、捷克文、荷蘭文、法文、德文、義大利文、日文、西班牙文、瑞典文、簡體中文

串流協定支援

RTMP、RTP、MMS(Windows)

編解碼格式支援

X264、ProRes、Motion JPEG、Windows Media(Windows)

令人驚豔的輸出選項

Wirecast 在輸出的選項方面有著無與倫比的多功能性。串流、Record或是從 Local baseband SDI、HDMI輸出,外部掛載顯示卡和 multiviewer 輸出,以及 NDI 和 IP multi-casting 與 unicasting 在您的 LAN 進行選擇。
Wirecast 的虛擬攝影機和麥克風輸出甚至可以將您的 Wirecast program 音頻與視頻推送到其他軟體,例如 Skype、Google Hangouts 等等。

讓您的播放內容看起來更專業

  • 多重使用者定義層級:Wirecast的多重層級支援高達5層的即時合成,且無拍攝上限。
  • Desktop Presenter內建螢幕擷取:在您網路內的任一電腦上以HD 60 fps播放。適用於PowerPoint或Keynote簡報、線上電競賽事,或透過Skype或其他聊天軟體現場轉播訪問。
  • 即時重播:擷取並重播直播作品的片段。
  • 播放清單:列出多段影片、聲音、現場拍攝或多張影像,以成功播放。
  • 令人驚豔的標題:內建超過30款專業播放品質標題主題。
  • 整合Twitter:在播放中直接編輯加入Twitter訊息。
  • 色鍵:利用Wirecast的高品質GPU加速即時綠背景解決方案,將作品傳送至新攝影棚或地點。
  • 計分板:利用內建計分板樣板追蹤直播運動賽事分數。
  • 轉場:即時生成轉場及效果,包括交替淡化、3D立方體、旋轉門、滑行等。
  • 虛擬布景:透過Wirecast內建布景建立虛擬電視攝影棚環境。
  • 3D動畫標題:NewBlue Titler Pro Live plugin(選配功能)
  • 3D 虛擬布景:Virtualsetworks Package One(選配功能)

直播設定


透過Wirecast將高畫質直播到Facebook

規格資訊


Camera Support

Capture your live feeds from a wide range of standard definition (SD) and high definition (HD) camera and video sources.


USB/Webcams

Most USB webcams should work with Wirecast as long as they are supported by AVFoundation on Mac OS X and DirectShow on Windows. Some typical webcams include, but are not limited to:
LogitechWindows 7Windows 8OS X 10.9OS X 10.10
HD Pro Webcam C9106.06.06.06.0
HD Pro Webcam C9206.06.06.06.0
Webcam C930e6.06.06.06.0
Logitech BroadcasterN/AN/A5.0.3N/A
HD Webcam C6156.06.06.06.0
MicrosoftWindows 7Windows 8OS X 10.9OS X 10.10
LifeCam Cinema6.06.06.06.0
LifeCam Studio6.06.06.06.0

Composite, S-Video, DV/HDV, Component, SDI, HD-SDI, HDMI Sources

Most Standard Definition (SD) and High Definition (HD) consumer, "prosumer" and professional-grade cameras, decks and video sources with composite, S-video, Firewire, component, SDI, HD-SDI, or HDMI outputs should work with Wirecast through a qualified capture card.


IP Cameras / Web Stream sources

  • Wirecast Cam, a free iOS app for Wirecast 6, lets you use any iPhone (4s or newer) or iPad on your WiFi network as an ingest source into Wirecast.
    Download Wirecast Cam App for iOS
  • Wirecast Pro now accepts RTMP, RTMPS, RTMP(e), RTSP, HTTP, and MMS streams directly with proper credentials and stream keys (if required).
  • Wirecast Pro is also compatible with web/IP/security cameras and network devices.
  • Wirecast Pro also supports web streams which support network video ingest over the Apple Bonjour protocol.
  • Teradek Cube is also supported through the Wirecast Source SDK.

Capture Card Support

Capture cards are a great way to add additional input ports into your computer and offload some of the real-time processing of incoming footage. Telestream is continually testing and qualifying new devices. Once verified, they will be added to this "Capture Card Support" list.

AvermediaWindows 7Windows 8OS X 10.9OS X 10.10
Game Broadcaster HDN/A5.0.1N/AN/A
Blackmagic DesignWindows 7Windows 8OS X 10.9OS X 10.10
Decklink SDI6.06.06.06.0
Decklink Quad6.06.06.06.0
Decklink Studio6.06.06.06.0
Decklink Duo6.06.06.06.0
Decklink Mini Recorder6.06.06.06.0
Decklink Mini Monitor6.06.06.06.0
Intensity Pro6.06.0N/AN/A
Intensity Shuttle (USB3)6.06.0 (input)N/AN/A
Intensity Shuttle (Thunderbolt)N/AN/A6.06.0
UltraStudio SDI (USB3)6.06.0 (input)N/AN/A
UltraStudio Express (Thunderbolt)N/AN/A6.06.0
UltraStudio Mini Recorder (Thunderbolt)N/AN/A6.06.0
UltraStudio Mini Monitor (Thunderbolt)N/AN/A6.06.0
Bluefish444Windows 7Windows 8OS X 10.9OS X 10.10
Epoch 4K Neutron6.06.0N/AN/A
Epoch 4K Supernova S+6.06.0N/AN/A
EpiphanWindows 7Windows 8OS X 10.9OS X 10.10
DVI2USB 3.06.06.0N/AN/A
DVI2PCI-E6.06.0N/AN/A
MatroxWindows 7Windows 8OS X 10.9OS X 10.10
MX02 Mini with MAX5.0.3 (SDK)5.0.3 (SDK)N/AN/A
VS46.0 (SDK)6.0 (SDK)N/AN/A
YuanWindows 7Windows 8OS X 10.9OS X 10.10
SC510N4 (4-input HDMI)N/A4.3.1N/AN/A

Manufacturer-tested capture cards

PLEASE NOTE: Devices not listed below, or qualified by our QA team as supported, may work with Wirecast. However, our technical Support staff does not have the information necessary to troubleshoot problems. Some of these devices are listed in our Manufacturer-tested and User-reported lists. In these cases, please contact the Manufacturer directly or refer to Wirecast Support Forum.

AJA

Mac & Windows

  • Io XT– Thunderbolt (2 Channels)
  • Io 4K – Thunderbolt (4 Channels)
  • Io Express (1 Channel)
  • KONA Lhi – PCIe (2 Channels/1 Audio)
  • KONA Lhe Plus – PCIe (2 Channels/1 Video)
  • KONA 3G – PCIe (4 Channels)
  • KONA 4 – PCIe (4 Channels)

Matrox

  • Matrox Multi-Ingest – PCle (Mac-only, SDK integration) All cards below work on Mac with AVFoundation

integration and Windows with SDK integration (ISO recording):

  • Matrox Mojito MAX – PCIe
  • MXO2 Mini – PCIe, Express Card 3/4, Thunderbolt
  • MXO2 LE – PCIe, Express Card 3/4, Thunderbolt
  • MXO2 LE MAX – PCIe, Express Card 3/4, Thunderbolt
  • MXO2 MAX – PCIe, Express Card 3/4, Thunderbolt
  • MXO2 Rack MAX – PCIe, Express Card 3/4, Thunderbolt
  • MXO2 – PCIe, Express Card 3/4, Thunderbolt

Blackmagic Design

Mac & Windows, DirectShow integration

  • DeckLink Mini Monitor, Mini Recorder, 4K Extreme – PCIe
  • UltraStudio Mini Recorder, Mini Monitor, Express, 4K –Thunderbolt
  • UltraStudio Pro – USB 3
  • Intensity Extreme – Thunderbolt

Osprey by Variosystems

Windows-only, DirectShow Integration

  • Osprey 240e, 450e, 460e, 825e, 845e – PCle

Magewell

All PCIe cards are Windows-only, DirectShow integration Windows-only, DirectShow integration:

  • XI006AE-PRO, XI100XE, XI100XE-PRO, XI102XE, XI102XE-HD, XI104AE, XI200XE-MINI, XI204XE, XI400DE-HDMI – PCIe
  • XI006AUSB, XI100XUSB-PRO, XI104XUSB, XI200X USB – USB 3.0

Mac & Windows, AV Foundation/DirectShow integration:

  • XI100DUSB-HDMI – USB 3.0
  • XI100DUSB-SDI – USB 3.0

Yuan

Windows-only, DirectShow Integration

  • SC510N4 HDMI – PCle

AVerMedia

Windows-only, DirectShow integration

  • AverTV CaptureHD (H727) – PCIe
  • Live Gamer HD (C985) – PCIe
  • Live Gamer Portable (C875) – USB 2.0

Telestream is continually testing and qualifying new devices. Once verified, they will be added to this "Capture Card Support" list. Devices not listed may work with Wirecast, but if they are not officially qualified, our technical Support Staff may not have the information necessary to troubleshoot. In these cases, please refer to the Wirecast Support Forum.


作業系統


MINIMUMRECOMMENDED
Operating SystemWindows 7, 8, 10, macOS Sierra, Mac OS X El CapitanWindows 10, macOS Sierra
Processori5 dual-core @ 2.3GHz1i7 quad-core @ 2.8GHz+
Memory 4GB RAM16GB+ RAM
Hard Drive2GB2, 7200 RPM for record to disk500GB+, Solid State OS Drive
Graphics Card Intel HD3, DirectX 11 capableNvidia GeForce or AMD Radeon, 1GB+ video memory
Internet ConnectivityOpen HTTP/HTTPS port 80, RTMP port 1935, port 7272 for Remote Desktop PresenterIf behind a firewall, check with your CDN for any sites to whitelist

1May be insufficient for 1080p+ or 60 fps workflows.
2Additional hard disk space required for record to disk.
3Insufficient for advanced Multi-Viewer workflows.

An internet connection is recommended for Wirecast 8.0 license activation.

ATTN: Wirecast 8 has dropped support of HDV licenses/cameras.
Please click here for additional information.

NewBlue Titler Live Express & Present Includes over 60 title templates for lower-thirds and overlays (Mac & Windows).



Remote Desktop Presenter – Please use the Remote Desktop Presenter version 2.0.8, available as a separate download from Telestream.


Languages Supported

  • English
  • Brazilian Portuguese
  • Chinese (Simplified)
  • Czech
  • Dutch
  • French



Best Practices


Minimum Required Upload Speed

  • It is recommended that an upload speed rate of at least double the selected video bitrate be available, especially for a total target bit-rate of 10Mbps (Megabits per second) or less, or when there are multiple outgoing streams.
  • Upload speed can be tested at a website such as TestMy.net/upload.
  • Additional tasks that can consume upload bandwidth on the network should also be considered when determining how much of the available upload bandwidth can be allocated towards streaming

Rendezvous

Wirecast Rendezvous uses WebRTC technology that can be very resource intensive. For the best experience, we suggest considering the following table when choosing hardware:
Studio (2 guests + 1 host)Pro (7 guests + 1 host)
Bandwidth4Add 4 MbpsAdd 5+ Mbps5
Processor4i5 quad-core6i7 quad-core6

4Based on a single simultaneous stream of 720p30 x264 @ 4.0Mbps.
5Bandwidth per guest will scale downwards as more are added to maintain reliability.
6Minimum recommended processor with example stream4. More demanding workflows may require a more capable CPU.


High frame-rate streaming (60fps):

  • High frame-rate streaming will result in increased CPU usage and require a higher bit rate (4Mbps or higher) for a quality encode.
  • Simply switching to a higher frame-rate without ensuring the CPU and bitrate are sufficient may result in a lower quality encode.

CPU Usage:

  • Consider lowering your canvas frame rate and/or streaming resolution to lower CPU usage.
  • Maintained system CPU usage greater than 60% will increase the likelihood of dropped frames.

ISO Recording

  • Solid State Drive or fast RAID array recommended for ISO Recording and Replay functionality.
  • Actual data rates will vary depending on quality level selected for ProRes (Mac) or MJPEG recording (Windows), as well as the resolution and frame rate selected.
    • For Mac ProRes recording please refer to Apple’s ProRes data rate specifications.
    • Windows MJPEG Best Quality Guidelines (Megabytes per second):
      • 1080i and 1080p 29.97 and 30 FPS, MJPEG Best Quality – ~25MB/sec
      • 1080p 60 FPS, MJPEG Best Quality – ~50 MB/sec
      • 720p 59.94 and 60 FPS, MJPEG Best Quality – ~20 MB/sec
  • Total expected data rate should be compared to available disk write speed to ensure adequate disk throughput.

Failure to ensure the available disk write speed is greater than the highest expected total data rate may result in frames being dropped from recordings (ISO, Replay, and Record-to-Disk).

Hardware accelerated encoding requirements:

  • Intel Quick Sync Video encoding requires an Intel CPU with an Intel® QuickSync Video core. List of Intel CPUs supporting QuickSync
  • NVIDIA NVENC encoding requires an NVidia GPU with Kepler architecture or newer. NVIDIA only maintains a general list of supported GPUs
  • Apple Hardware Accelerated H.264 encoding requires a Mac with an integrated Intel GPU. Note: This may change in the future, as the Apple API decides what hardware acceleration method is to be used. At the time of this writing, only Quick Sync via an Intel GPU is supported.



版本比較


擷取Wirecast Studio
[購買]
Wirecast Pro
[購買]
Support for multiple cameras and inputs (USB, SDI, HDMI)無限制無限制
Wirecast Rendezvous: remote guests and production2 guests7 guests
NDI™ (Mac/PC) and Syphon (Mac only) sources
Web page display and capture
Multi-channel audio ingest
Add additional media: audio, video, graphics
Screen capture
Integration with capture cards from Blackmagic, Magewell, Matrox, AJA, Epiphan
(check website for complete list)
WiFi iOS sources with Wirecast Go
ASIO support
IP cameras and web stream input (RTMP, MMS, HTTP, and RTSP)
Teradek steamreader plug-in (cube 100/150/200/250, Clip, Sputnik)
製作Wirecast StudioWirecast Pro
Up to 250 layers
23 beautiful transitions
Text and titles (lower thirds)
Chromakey
Advanced audio mixer, multi-channel ingest
Audio & video sync
Social media comments, curation, and display
Playlists and image carousels
Clocks, timers, and stopwatches
Scoreboards with Titler Live Sport
8-track audio mixing, Pro Audio FX
Animated graphics and titles, Facebook comments, with NewBlue Titler Live Express FREE with purchaseExpress FREE with purchase
Instant Replay
3D virtual sets
+ Optional add-on sets
輸出 & 串流Wirecast StudioWirecast Pro
GPU-accelerated encoding (requires Intel or Nvidia GPU)
RTMP, RTP multi + unicast
Built-in destinations: Periscope/Twitter, Brightcove, Facebook, YouTube, DaCastAkamai, Wowza, Microsoft Azure, and more…
Record to disk (MP4, MOV)
24/7 ambient Facebook streaming
Sponsored Facebook Live content
Multi-viewer output1-4-slot1-17-slot
Virtual Camera and Microphone output
Monitor output data and statistics
ISO Record individual sources
Program feed output (AJA and Blackmagic cards)
NDI™ output
Multi-track audio files

問題反映
